Rohn Side Arm Mounts

Antenna Parts Outlet

Regular price $245.00

Side Arm Mounts for Rohn Tower

*** THESE ITEMS SHIP FREE ***



ROHN PART NUMBER: SA253UA

ROHN SA253UA is a double side arm mount for lightweight broadband, SCADA, and two-way antennas. Fits 25G, 45G, 55G, AND 65G towers. Adjustable standoff 2.5' to 3'.  Included mounting tube is 2-1/4" x 3' long. WEIGHS 28 LBS

ROHN PART NUMBER: UHF25G

ROHN UHF25G side arm mount for UHF and FM Antennas. Fits 25G towers. Accepts 7/8" to 1-1/8" OD Mounting pipe (not included). WEIGHS 4 LBS

ROHN PART NUMBER: KY2068A15

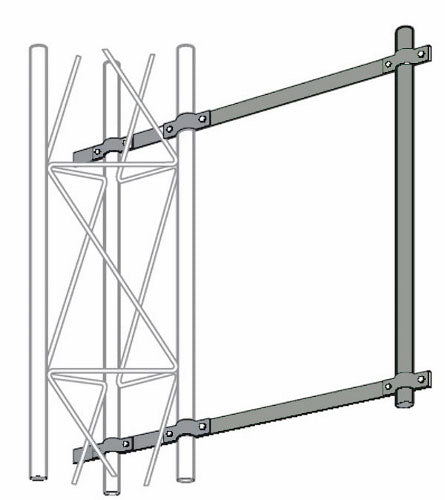

ROHN KY2068A15 is a Hot Dip Galvanized Mounting Pipe Version of this DBS (Direct Broadcast Satellite) Side Arm Antenna Mounting Assembly for the ROHN 25G Tower. 12" Mounting Bracket. Mounting tube included is 1-1/2" OD x 36" long. WEIGHS 25 LBS

ROHN PART NUMBER: KY2068A16

ROHN KY2068A16 is a Hot Dip Galvanized Mounting Pipe Version of this DBS (Direct Broadcast Satellite) Side Arm Antenna Mounting Assembly for the ROHN 25G Tower. 12" Mounting Bracket. Mounting tube included is 1.66" OD x 36" long. WEIGHS 26 LBS

ROHN PART NUMBER: KY2068A2

KY2068A2 is a Hot Dip Galvanized Mounting Pipe Version of this DBS (Direct Broadcast Satellite) Side Arm Antenna Mounting Assembly for the ROHN 25G Tower. 12" Mounting Bracket. Mounting tube included is 2.38" OD x 36" long. WEIGHS 34 LBS
